Kapazitiver Wohnungs-Material WNK805m IP65 des Druck-Sensor-kleines Edelstahl-304:

Kapazitiver Wohnungs-Material WNK805m IP65 des Druck-Sensor-kleines Edelstahl-304:

Luftdruckgeber

Minidruck-Sensor

Herkunftsort:

Anhui, China

Markenname:

WNK

Zertifizierung:

CE, SGS, ISO9001

Modellnummer:

WNK805

Kontakt mit uns
Bitte um ein Angebot
Product Details
Modellnummer:
WNK805
Genauigkeit::
0.2%FS, 0.5%FS
Gemessene Medien:
Flüssigkeit, Gas und Dampf
Ausgangssignal:
4~20mA, 1-5V (optional)
Druckbereich:
-100KPa~60MPa
Power Supply:
10.5-55V DC, DC 10.5-30V
Schutzart:
IP65
Umgebungstemperatur:
-40~85℃
Wohnungs-Material::
304 Edelstahl
Hervorheben:

Luftdruckgeber

,

Minidruck-Sensor

Payment & Shipping Terms
Min Bestellmenge
1-teilig
Preis
negotiable
Verpackung Informationen
Seetaugliche Verpackung oder flugfähige Verpackung
Zahlungsbedingungen
D/A, L/C, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit
5000-teilig/Stücke pro Monats-Druckgeber
Product Description

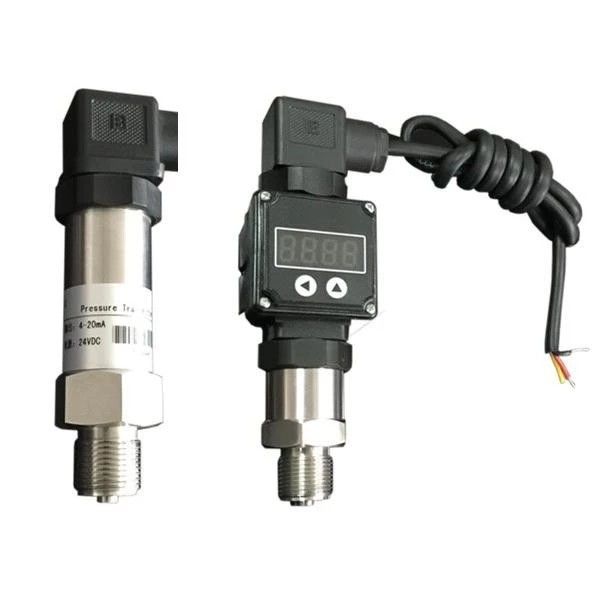

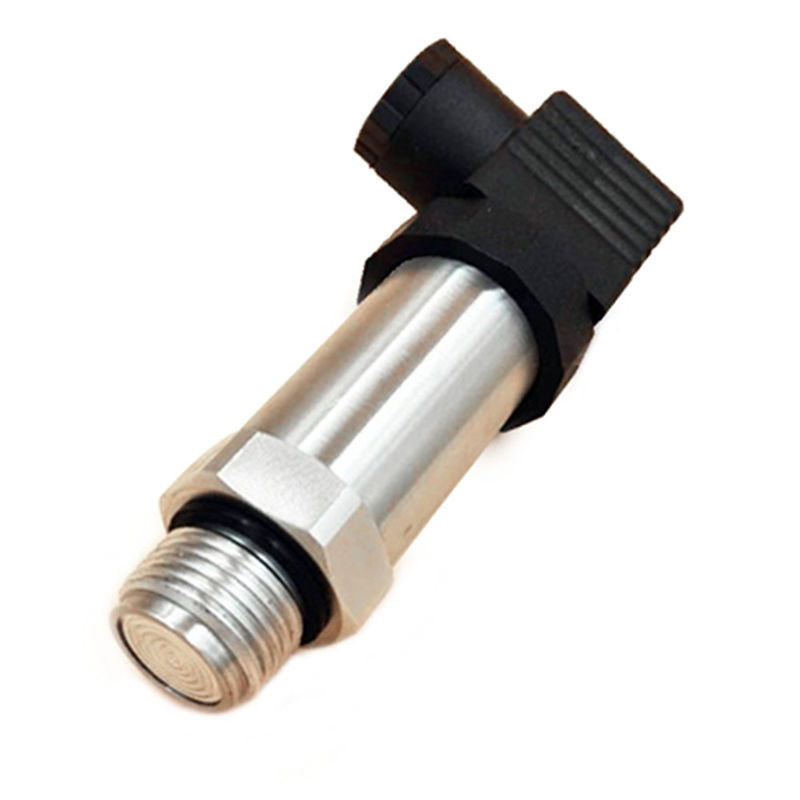

 WNK805mA IP65 Capacitive IIC Lora Small Size Pressure Sensor

Kapazitiver Wohnungs-Material WNK805m IP65 des Druck-Sensor-kleines Edelstahl-304: 0





Products Description

 WNK805mA IP65 Capacitive IIC Lora Small Size Pressure Sensor

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media Liquid, Gas, Steam
Pressure range -100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa
Pressure measurement Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy 0.2% FS, 0.5% FS
Stability ±0.25% FS/year
Zero drift 50% of full range span.
Max overload 200% of sensor range
Bandwidth / Response time 1 millisecond (Optional for analog type)
Output signals 4~20mA, 1-5V(optional)
Display LED (Optional)
Housing material 304 stainless steel
Mechanical connection M20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize
Protection class IP65
Power supply Non-explosion: 10.5~45V DC
EEX ia:8~30 V DC
Ambient temperature -40~85℃
Process temperature -40~85℃
-40~150℃ (diaphragm type, clamp type)
Compensation temperature -10~70℃
Features

1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit.

2.With precise temperature characteristic compensation, it can be used reliably and stably

3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.





FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
